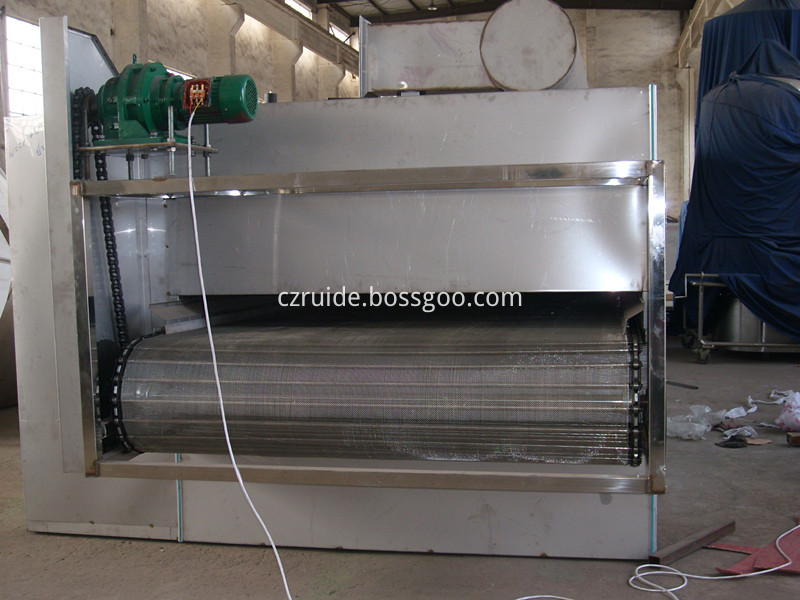

Activated carbon belt drying equipment
|Terms of Trade:||FOB,CFR|
|Min. Order:||1 Set/Sets|
|Delivery Time:||30 Days|
|Place of Origin:||China|
Model No.: DW
Mesh Belt Dryer for Rubber Industry,DW Series Mesh Belt Dryer Drying Dryer,Mesh Belt Dryer,Mesh Belt Drying Machine,Drying Machine
Activated Carbon belt drying equipment introductionThis machine is a continuous penetrating flow dryingequipment applied for drying pieces strip and particles state materials with good ventilation. The machine is suitable for the materials such as dewatering vegetable, herbal medicine of
traditional Chinese medicine and others, for which the water contents are high and high drying temperature is not a llowed.The machine owns the advantages, of fast drying speed, high evaporation capacity and good product quality . The de-watered & ltered cake state paste material should be made into particles or strips before drying process.
Activated carbon belt drying equipment Characteristics
◎Equipments configuration is very flexible. It can use the netlike belt washing system and cooling raw material system.
◎Hot air can be circularly applied, the energy is greatly saved.
◎Unique air dividing device, it makes hot air distribute uniformly; this can guarantee products' quality .
◎Heating source can be selected from steam, conducting heat oil, electricity , coal furnace and oil burner .
Activated carbon belt drying equipment Working Principle
according to the production demands.
Activated carbon belt drying equipment Technical Parameter
|quantity of unit||4||5||4||5||4||5||10|
|width of belt(m)||1.2||1.6||2|
|length of dry section(m)||8||10||8||10||8||10||20|
|thickness of raw material spreading(mm)||10-80|
|steam consumption (kg/h)||120-300||150-375||150-400||180-500||180-500||225-600||450-1200|
|dry time (h)||0.2-1.2||1.25-1.5||0.2-1.2||0.25-1.5||0.2-1.2||0.25-1.5||0.5-3|
|dry capacity kg water/h||60-160||80-200||85-220||100-260||100-260||120-300||240-600|
|total equipped power (kw)||11.4||13.6||14.6||18.7||19.7||24.5||51|
Changzhou Ruide Drying Engineering Technology Co., Ltd
Changzhou Ruide Drying Engineering Technology Co., Ltd. is a professional manufacturer of drying, mixing, granulating and grinding equipment. Our firm has strong technical force and adopts CAD system, with a modern workshop. Our company is located in the economic center of Yangtze River Delta - Changzhou. Our company has a large-scale manufacturing site. The engineers and technicians account for more than 70% of total staff members. In accordance with the national GMP standard, Our company has a professional team with support from Tianji University, Dalian university of technology and many other famous universities. We keep up with the latest international development within our scope and advocate scientific orientation. Our company is possessed with excellent means of detection and advanced conception of management. We can meet the requirements of domestic and international customers. The production of our equipment conforms strictly to the ISO9001 international quality management system. Their successful application is in the scope of pharmaceutical,chemical, foodstuff industries and so on, which has achieved the internationalization of the product quality. The honest and practical conduct of enterprise, excellent product quality, precise follow-up maintenance service and excellent after-sale service have gained us market and credit.
- Company Name: Changzhou Ruide Drying Engineering Technology Co., Ltd
- Representative: Zhongxing Liu
- Product/Service: Drying Equipment , Mixing Equipment , Granulating Equipment , Sieving Equipment , Grinding Equipment , Conveying Equipment
- Capital (Million US $): 10,000,000RMB
- Year Established: 2015
- Total Annual Sales Volume (Million US $): US$1 Million - US$2.5 Million
- Export Percentage: 71% - 80%
- Total Annual Purchase Volume (Million US $): Below US$1 Million
- No. of Production Lines: 3
- No. of R&D Staff: 5 -10 People
- No. of QC Staff: Fewer than 5 People
- OEM Services Provided: yes
- Factory Size (Sq.meters): 3,000-5,000 square meters
- Factory Location: Jiaoxi Town, Wujin District, Changzhou City, Jiangsu Province
- Contact Person: Mr. Denis
- Tel: 86-519-68231907
